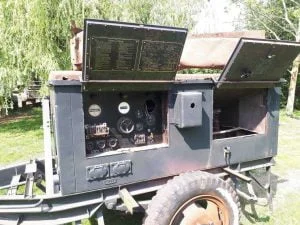

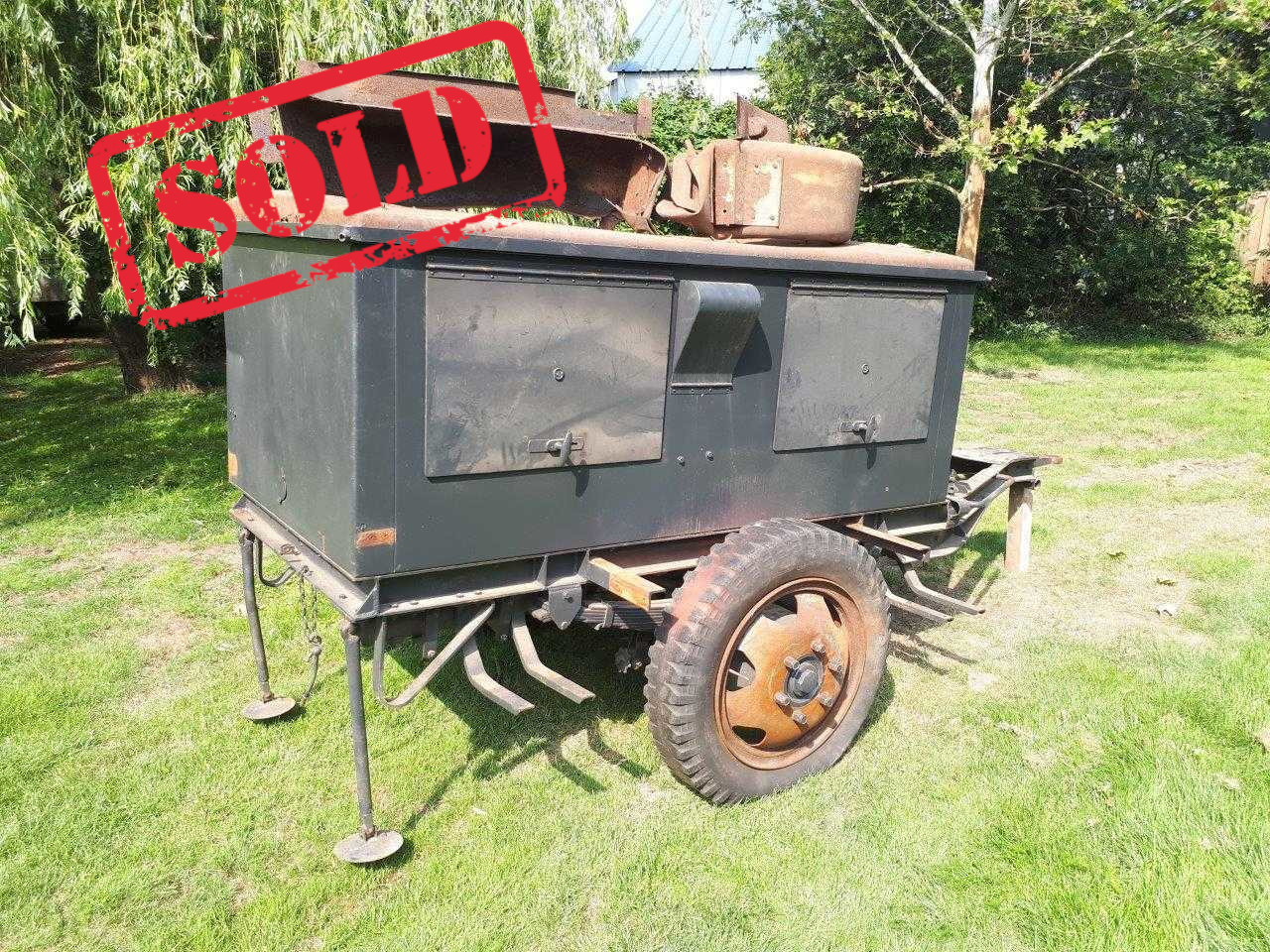

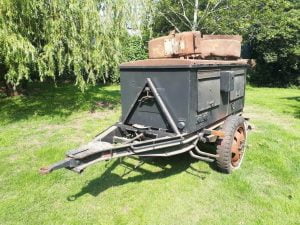

German Sd.Anh.24 for sale.
This Sd.Anh.24 is almost complete(90%)
Does not have a running engine but is almost complete.
| Net weight | 2,050 kg | 4,519 lb. | ||
| Gross weight | 2,050 kg | 4,519 lb. | ||
| Weight: axle | 2,050 kg | 4,519 lb. | ||
| Length (overall) | 3,440 mm | 11 ft., 3 ins. | ||
| Width (overall) | 1,880 mm | 6 ft., 2 ins. | ||
| Height (overall) | 1,840 mm | 6 ft. | ||
| Ground clearance | 350 mm | 13 3/4 ins. | ||
| Tread centers | 1,500 mm | 4 ft., 11 ins. | ||
| Wheel width | 210 mm | 8 1/4 ins. | ||
| POWER UNIT | ||||
| Piston displacement | 2,496 cu cm | 150 cu. ins. | ||
| Performance-horsepower | 26 c-v | 25.6 hp | ||
| Revolutions per minute | 1,500 | |||
| Type (cycles) | ||||
| Capacity of fuel tank | 50 liters | 13.2 gal. | ||
| Fuel consumption per operating hour | 6.5 liters | 1.7 gal. | ||
| Total running time on one tank filling | 8 hrs. | |||
| CURRENT GENERATOR (Electric Motor) | ||||
| Type of current | (Three phase current) | |||
| Kilowatt | 12 | |||
| Volt | 220/380 | |||
| Ampere | 25 | |||
| Frequency | 50 | |||
Needs a little TLC!
More pictures , price and information :Info@byf41.com,or fill in the contact form and we reply fast as possible! We can help with world wide shipping.
Want to have more information about the German Sd.Ah.24 trailer? Fill out this form.
